Extinguisher Training Module

STROSE
LIVE FIRE

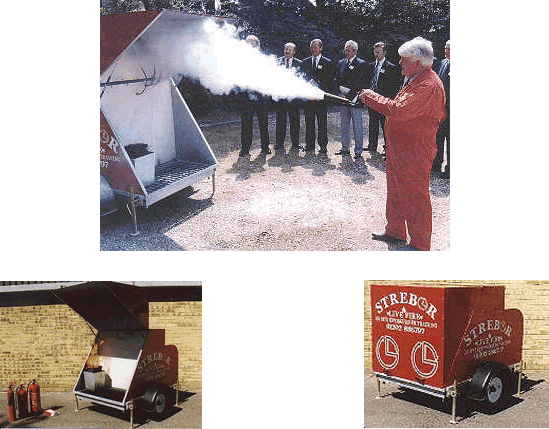

EXTINGUISHER TRAINING MODULE

Image 1

Product Code:
NATO Stock No:
STR 0079-20
21FF-266-0000


Manufacturing Specification


Towing Size Length 220cms Width 150cms Height 145cms
Ground Clearance: 25cms
Operating Height: 200cms
Chassis: Frame: Carbon Steel Axle: Carbon Steel
Finish: Galvanised to BS 729
Suspension: Rubber Indespension Units
Wheels: 500 X 10 8 ply Tyres
Telescopic Screw Type Front Jockey Wheel
Quick Release Drop Down Corner Jacks
Brakes: Not Required
Towing Hitch: 50mm Lockable to BS114/ISO 38543
Stowage Locker: Depth 75cms Width 80cms Height 65cms
Security: Aluminium Roller Shutter Lockable
Carrying Capacity: 120 kg
Stowage: 2 x Fire Extinguishers 2 kg CO2
2 x Fire Extinguishers 6 kg Dry Powder
2 x Fire Extinguishers 9 ltr Foam
2 x Fire Extinguishers 9 ltr Water
1 x Fire Blanket
1 x Propane Bottle 13 kgs
Weight Fully Laden: 500 kilo


Control System



"FAIL SAFE" remote control ruggedised handset controls the Gas Ignition System and Gas Supply Valves.


Electrical Supply Independent 24v DC ( 2 x 12v 18ah dry cell batteries)
Fire Fuel Propane LPG Regulated to BS3016
Flexible Pipe Stainless Steel BS 3218 Test Pressure 20 bar
Fuel Status: Contents Gauge
Battery Status: Display Meter
Battery Recharge: 240v AC Charger 12vDC from Towing Vehicle
Gas Ignition: Electronic
Gas Valves: 24v DC Fail Safe Approved to EN161:1991
Gas Regulator: Calor Type 1991P
Pyroflash: Le Maitre Silver Star 6001012L Hazard Class 1.4S


Operating Specification


Operating Temperature: -20 to + 40 deg.C
Power Input: 24v DC
Remote Operating Range: 15 - 20 metres
Handset Power: Alkaline Batteries 4xAA or equivalent
Humidity: 10% to 95% non condensing
Radio Frequency: 418 MHz band

THE MODULE COMPLIES WITH ALL RELEVANT REGULATIONS APPLICABLE IN THE EUROPEAN COMMUNITY
